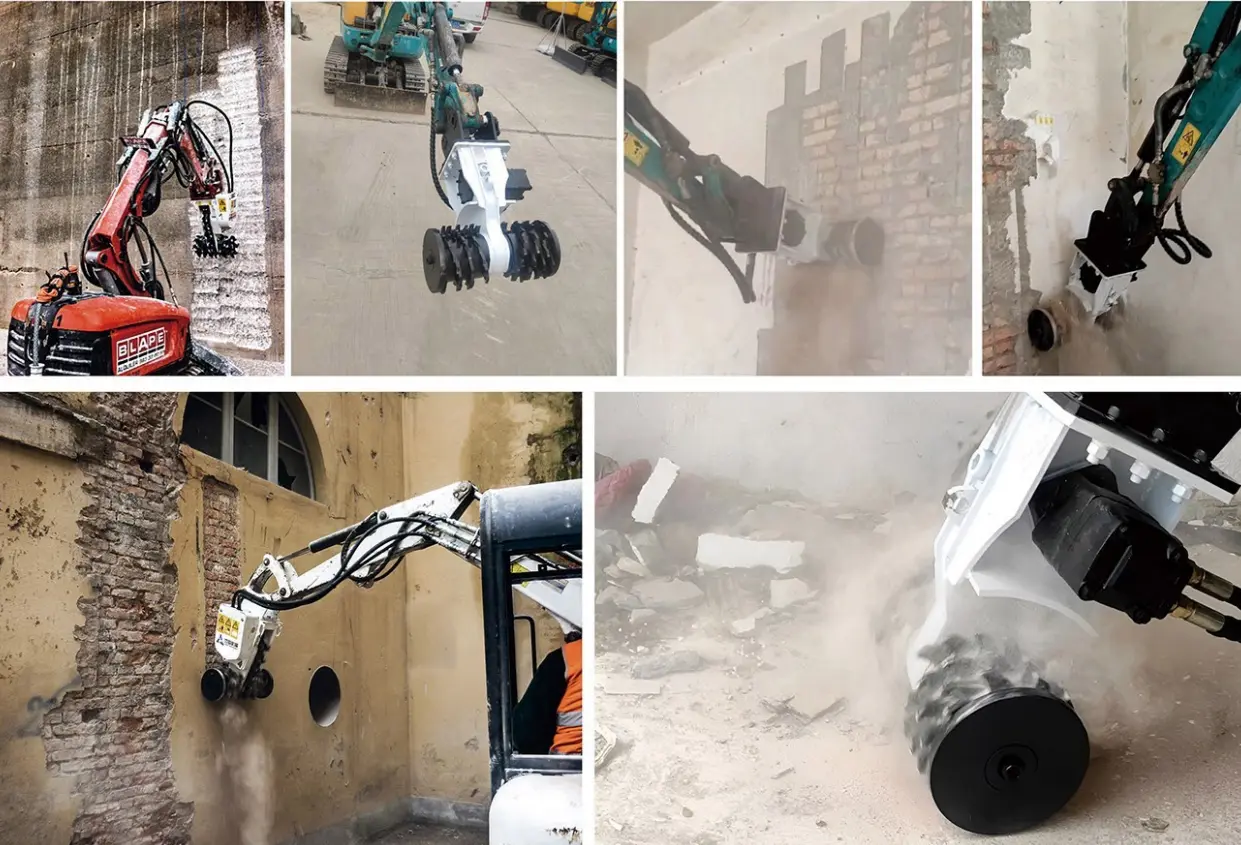

The DC100 is a compact drum cutter specially designed for mini excavators, ideal for indoor wall scraping, surface finishing and renovation works in high-rise buildings, replacing labor-intensive manual planing.

✨ Key Features

• Specially designed for mini excavators, fits in elevators to reach high-rise buildings, replacing traditional manual wall scraping work
• Patented continuous-cutting cutter heads deliver full-width uninterrupted cutting, leaving smooth and even finished surfaces
• Die-cast alloy cutter heads offer exceptional durability and can be replaced individually, lowering maintenance costs
• Quiet and precise operation, suitable for indoor renovation and urban construction with minimal disturbance to surrounding areas

📋 Basic Information

• Product Name: Hydraulic Drum Cutter / Wall Scraper (Mini Excavator Mounted)
• Model: DC100
• Suitable Excavator: 1–3 ton mini excavators (customizable for other tonnages)
• Core Functions: Wall scraping, surface planing, concrete finishing, trench trimming
• Mounting Interface: Standard mini excavator quick hitch interface
• Applications: High-rise interior renovation, wall surface leveling, concrete finishing, narrow trench trimming

⚙️ Technical Parameters

Reference specifications, subject to actual product parameters

• Standard Cutting Width: 100 mm
• Max Cutting Depth: 3–5 mm
• Working Pressure: 12–20 MPa
• Recommended Hydraulic Flow: 20–60 Lpm
• Unit Weight: Approx. 85 kg
• Cutter Head Material: Die-cast alloy

🛠️ System & Configuration

• Drive System: Hydraulic drive for stable and continuous cutting performance
• Cutter Head Option: Replaceable die-cast alloy cutter heads for long service life
• Frame Structure: Compact heavy-duty steel structure built for narrow indoor working spaces
• Control Mode: In-cab hydraulic control for simple and precise operation
• Custom Service: Mounting brackets and cutter head specifications customizable for different mini excavator brands

Contact our engineering team for custom cutter head and mounting solutions tailored to your mini excavator. Get a free quotation today.
