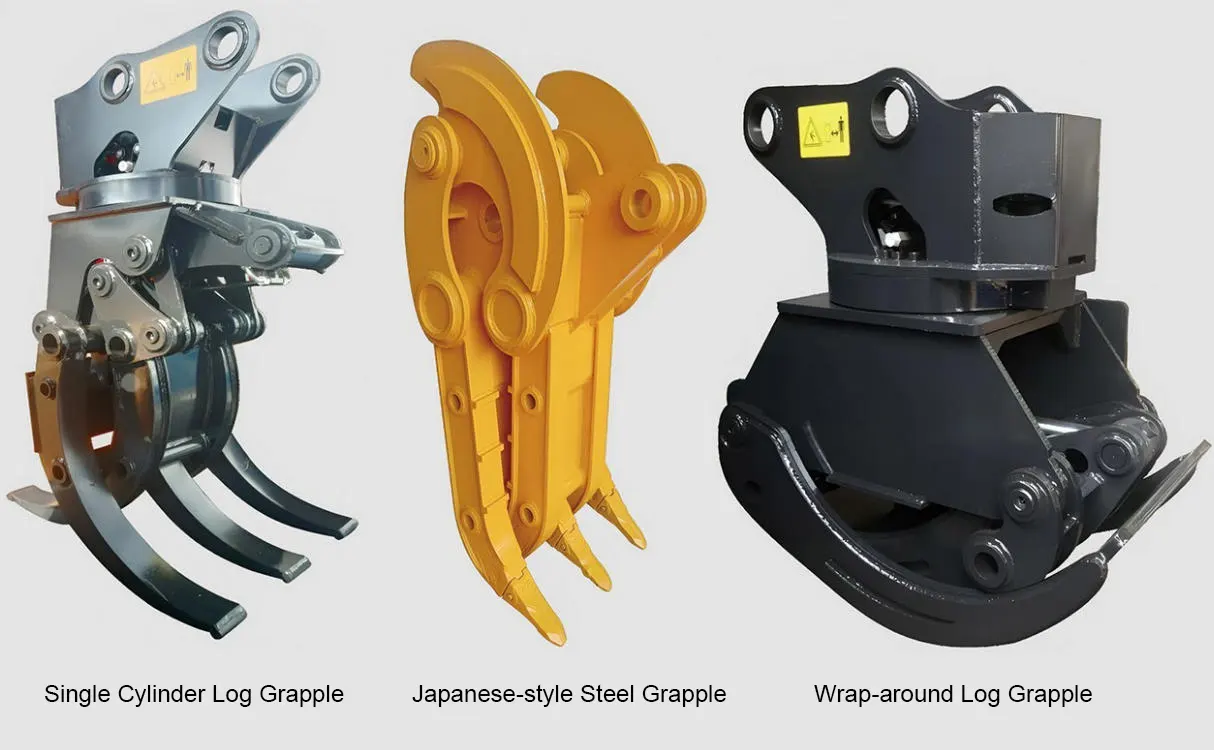

The LG120 is a versatile excavator-mounted hydraulic log grapple designed for timber handling, material sorting and loading works, widely used in forestry yards, construction sites and recycling facilities.

✨ Key Features

• 360° hydraulic rotation enables flexible angle adjustment, adapting to various stacking states of timber, stone and scrap materials
• High-strength wear-resistant alloy steel teeth deliver tight gripping and stable lifting, suitable for multiple heavy-load handling scenarios
• Excavator-mounted design replaces manual loading and unloading, greatly improving material transfer efficiency and reducing on-site safety risks
• Standard quick hitch interface allows fast installation and seamless switching with other excavator attachments
• Reinforced heavy-duty steel frame provides exceptional impact resistance and durability for long-term outdoor operation

📋 Basic Information

• Product Name: Hydraulic Log Grapple (Excavator Mounted)
• Model: LG120
• Suitable Excavator: 2–36 ton excavators (customizable for all tonnages within this range)
• Core Functions: Timber handling, log loading & unloading, scrap sorting, stone grabbing
• Mounting Interface: Standard hydraulic quick hitch interface
• Applications: Timber yards, forestry logistics, construction waste sorting, stone material handling

⚙️ Technical Parameters

Reference specifications, subject to actual product parameters

• Max Opening Width: 1200 mm
• Rated Grabbing Weight: 800 kg
• Rotation Range: 360° hydraulic rotation
• Working Pressure: 16–25 MPa
• Recommended Hydraulic Flow: 40–120 Lpm
• Unit Weight: Approx. 220 kg
• Grapple Teeth Material: High-strength wear-resistant alloy steel

🛠️ System & Configuration

• Drive System: Hydraulic rotary drive for smooth 360° rotation and stable gripping force
• Grapple Option: Custom tooth spacing and configurations available for different handling materials
• Frame Structure: Heavy-duty reinforced steel construction built for heavy-load working conditions
• Control Mode: In-cab hydraulic control for rotation and gripping operations
• Custom Service: Grapple size and mounting brackets customizable for different excavator brands

Contact our engineering team for custom grapple configurations and mounting solutions tailored to your excavator. Get a free quotation today.
