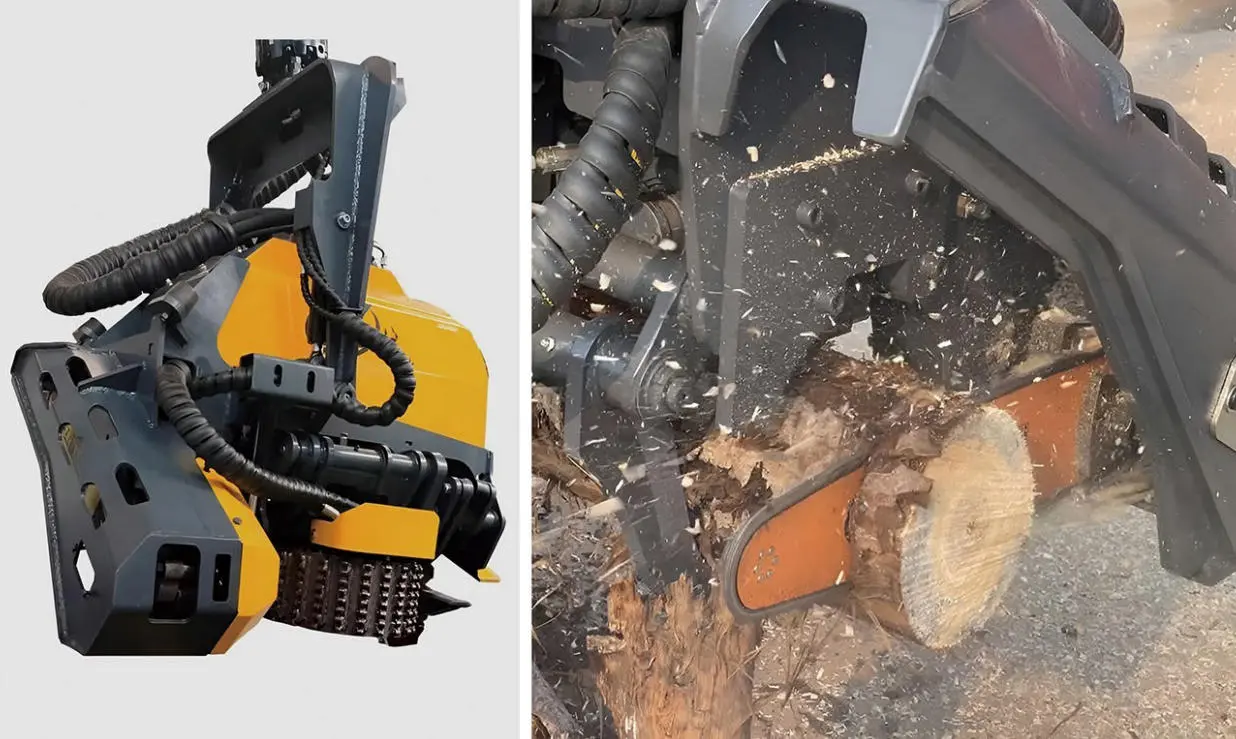

The LM360 is a cost-effective excavator mounted logging machine designed as a reliable alternative to imported models, ideal for forestry felling, trunk processing and plantation harvesting works.

✨ Key Features

• Cost-effective alternative to imported felling heads, with simpler structure and more user-friendly operation
• Integrated clamping and cutting function: firmly grips the trunk, cuts at the base and delivers fixed-length trunk processing
• Full 360° hydraulic motor rotation enables flexible cutting angle adjustment for various working positions
• Hidden chain saw design ensures stable cutting performance and longer service life for cutting components
• Optimized hydraulic system delivers enhanced durability and reliability compared with imported equivalents

📋 Basic Information

• Product Name: Hydraulic Automatic Logging Machine (Excavator Mounted)
• Model: LM360
• Suitable Excavator: Customizable to match your excavator specifications
• Core Functions: Tree felling, trunk clamping, fixed-length cutting, timber processing
• Mounting Interface: Standard hydraulic quick hitch interface
• Applications: Forestry logging, plantation harvesting, timber processing, landscape tree removal

⚙️ Technical Parameters

Reference specifications, subject to actual product parameters

• Max Felling Diameter: 350 mm
• Rotation Range: 360° full hydraulic rotation
• Cutting Method: Hidden chain belt saw
• Working Pressure: 16–25 MPa
• Recommended Hydraulic Flow: 60–160 Lpm
• Unit Weight: Approx. 380 kg

🛠️ System & Configuration

• Drive System: High-torque hydraulic motor for smooth 360° rotation and stable cutting power
• Cutting System: Hidden chain saw structure with wear-resistant cutting parts for long service life
• Frame Structure: Heavy-duty high-strength steel construction built for harsh forestry working conditions
• Control Mode: In-cab hydraulic control for clamping, rotating and cutting operations
• Custom Service: Mounting brackets and hydraulic parameters customizable for different excavator brands

Contact our engineering team for custom mounting solutions tailored to your excavator. Get a free quotation today.
